Modules allow wide range of measurements
Suitable for a variety of measurements due to flexible combinations
Measurements for different applications can be added to the module. It is also possible to mix measurements by adding different types of modules.
Measurements for different applications can be added to the module

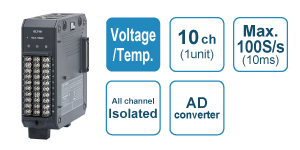

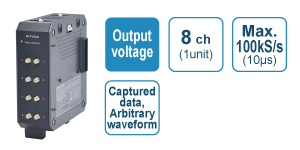

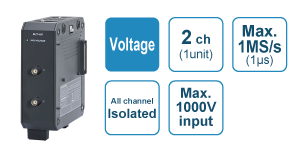

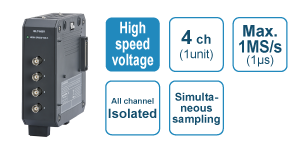

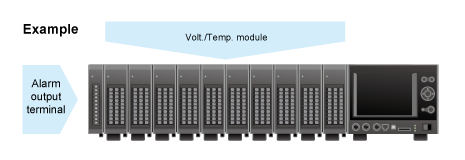

Up to 10 input/output modules can be attached to one main unit
Input module can be expanded to accommodate a wide variety of measurement.

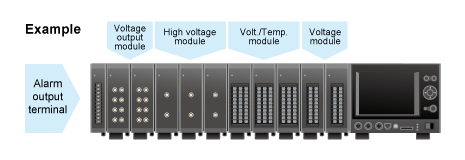

Each of the 10 units can include a different input/output module (*1)
Up to 10 input/output modules of the same kind can be attached to one main unit(*1)
- (*1)
- * If different types of modules are attached, the effective sampling speed of the system is to up to the fastest sampling speed among the installed modules. When the maximum sampling speed of the module is slower than the maximum sampling speed of the fastest amplifier, signal will be sampled with maximum sampling speed of the module. The same data is saved with the system sampling speed until new data is captured on the slower units.
- * The number of modules that can be attached is limited by the type of module. Up to 10 modules (maximum 112ch with 7 GL7-L/P module, max 100ch with GL7-V or GL7-M module).

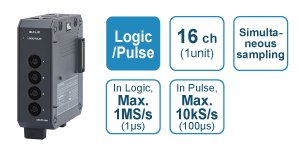

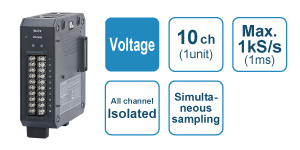

For Logic/Pulse module (GL7-L/P):
Maximum 7 units allowed using logic option (112ch).
Maximum 2 units allowed using pulse option (32ch).
(The mode for logic or pulse can be set for each unit.)

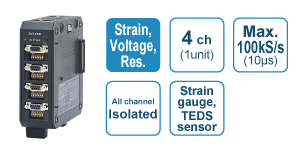

For Strain module (GL7-DCB):
Maximum 8 units allowed with additional two other amplifier units. (Number of channels is limited to 112ch.) - * For the logic/pulse module, the number of channels can be limited by the selected sampling speed when the module is attached together with other amplifier modules.
1μs sampling interval: up to 8 channels
2μs sampling interval: up to 16 channels (If two modules are attached, channel #1 to #8 in each unit can be used.)
When pulse mode is used, the maximum sampling speed is the 100μs. The data will be updated every 100μs.

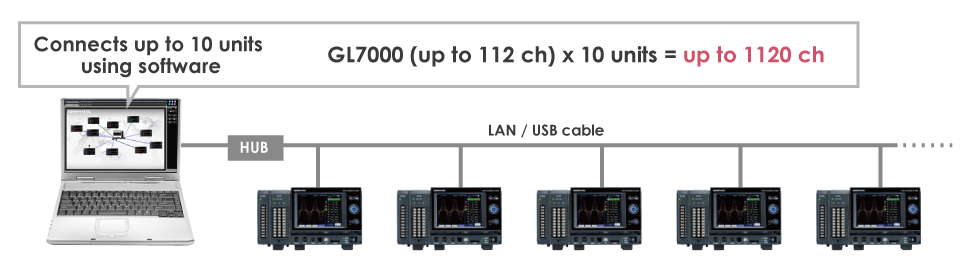

Up to 1120 channels can be measuring using the PC platform
Up to 10 units of the GL7000 can be connected to 1PC through LAN or USB and controlled using the software.

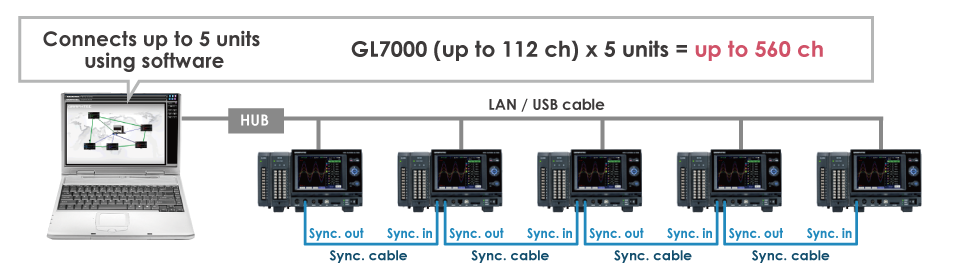

Up to 5 units of the GL7000 can be fully synchronized using the sync. cable
The start/stop, trigger and sampling can be synchronized in the GL7000 when they are connected by a sync. cable. The master and slave units are automatically identified.
*The sync. cable is optional (B-559).
