Useful functions for reacording and replaying data

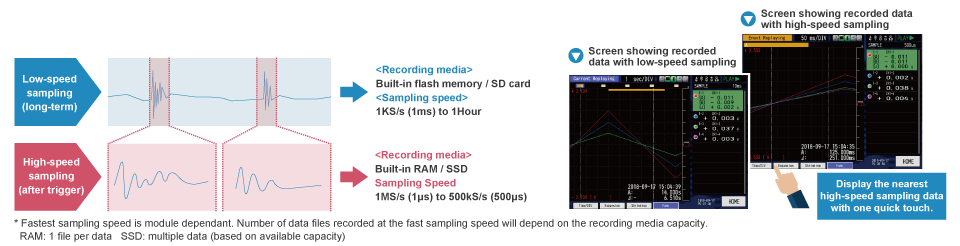

Dual-Sampling Feature *
Dual sampling speed can now be configured at the same time. While recording long intervals on the slow sampling speed, trigger set can start recording dynamic transient signals at a fast sampling speed.
* It is required firmware version 2.0 or later.

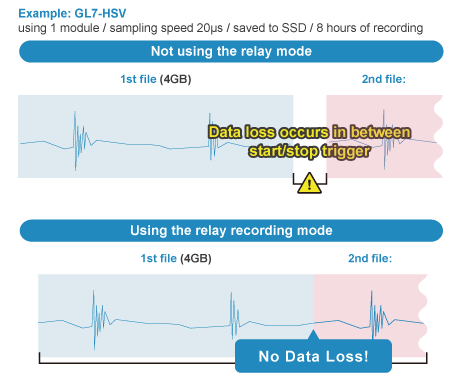

Enhanced relay recording function *
Up to 4GB data files can be recorded on a relay mode where no data loss occurs in between the files. This offers long term recording of dynamic data recording. Relay mode captures all data in between the data files eliminating data loss.
* The file for recording data is limited up to 4GB on firmware version 2.0 or later, 2GB on firmware version 1.6 or before.

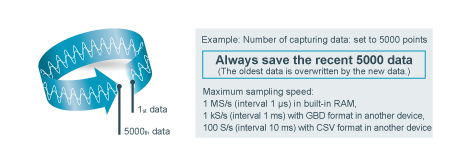

Ring mode
Saves most recent data of specified number after recording stops.
Number of capturing data 1000 to 10000000 data
* When using built-in RAM, 10 to 4000000 data
Back up recording data

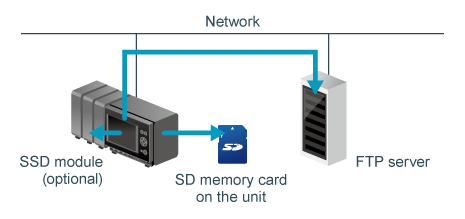

The data file can be created periodically for purpose of backing up data while recording it, and the file is automatically transferred to another storage device on the unit or FTP server on the network.
Backup interval: 1, 2, 6, 12, 24 hour(s)
Backup file destination: SD memory card, SSD module (optional), FTP server
Data file format: GBD (binary) or CSV (text)
* The CSV format is available with firmware version 2.10 or rater.
• Available sampling speed is the 10 ms or slower when using the CSV format.
• When the RING mode or external pulse synchronization sampling is selected for recording, the backup function is not available.
• The storage device specified as the recording destination of the measurement data can not be set as the transfer destination of the backup file.
• When backup is enabled and data file format is specified with CSV format, SD memory card exchange (hot-swapping) and RELAY recording are not available.
Other functions *
| Function | Description |
| Set time interval in between trigger repeat | Trigger repeat can not be activated based on START trigger and STOP trigger with set time interval. |
| Start/Stop Message On/Off Feature | Start/stop message will not have a on/off confirmation message. |
| SD memory card exchange | The SD card can be replaced during recording when the sampling interval is 100ms or slower. |
| Data search | Specific value (measured value, alarm point) of a particular channel in the recorded data can be searched and found automatically. |
| Movement by cursor | The cursor can be moved automatically to a specified time in the recorded data. |
| Statistical calculation with cursor | The statistical calculation (average, max, min, P-P, effective value) can be determined in between the recorded data specified by the cursor. |
