Wireless LAN

Wireless measurement using wireless LAN (option)*

* Optional Wireless LAN unit is available in limited region.
Wireless LAN option enables the wireless communication with other device.

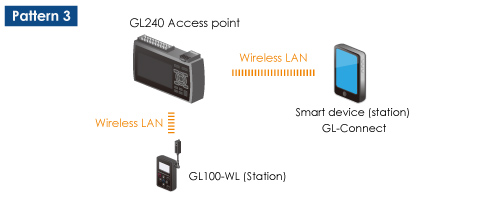

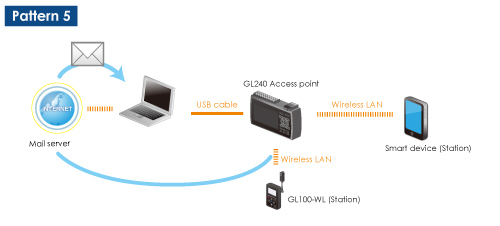

Connects to the GL100-WL wireless unit remotely when the GL240 is set as an access point.
When the GL240 is set as a station, PC and smart devices will be able to access the WLAN unit directly.

Case 1 : Combining GL100-WL and GL240

Case 2 : Remote monitoring of GL240 by PC or Smart device

Case 3 : Remote monitoring of GL240 using Network

Case 4 : Remote monitoring of GL240 via Internet

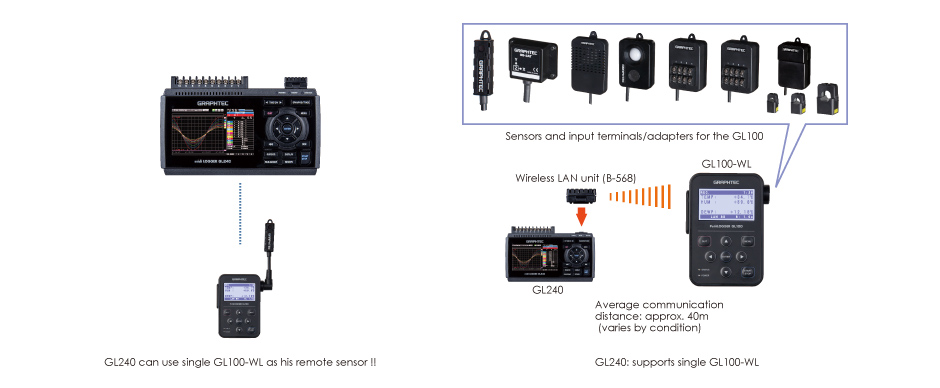

Case 1 : Combining GL100-WL and GL240

GL100-WL can now be connected to the GL240 as a remote sensor using the WLAN feature.
You can expand your measurement variety by adding the sensors available on the GL100-WL unit.
The measured value by GL100-WL will appear in a single file along with the measurement value from the GL240 main inputs. GL240 will now take in direct information from the GL100-WL unit. GL240 supports 1 unit of the GL100-WL.

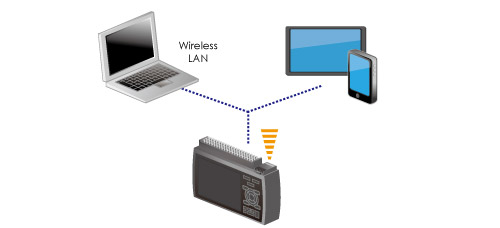

Case 2 : Remote monitoring of GL240 by PC or Smart device

Measured data can be monitored and controlled via PC or a smart device using the application software.

Using a wireless LAN, there is no needs to connect by USB cable with the GL240.

Available configuration

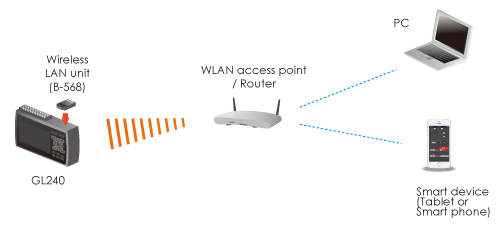

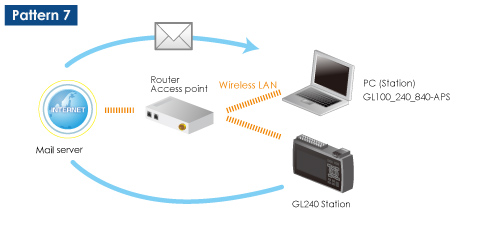

Case 3 : Remote monitoring of GL240 using Network

GL240 can be connected to a LAN (Local Area Network) via an wireless LAN access point.

Available configuration

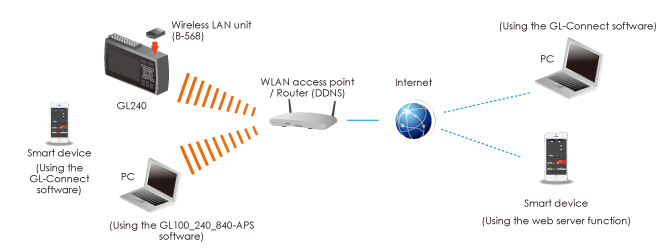

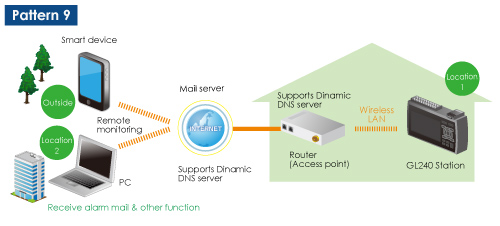

Case 4 : Remote monitoring of GL240 via Internet

Using a router that supports a dinamic DNS service,
it enables to monitor GL240 remotely via Internet.
In other words, it is possible to contact your GL240 wherever you are !!

Available configuration

Wireless LAN unit (option) specifications
