PC & Smart devices

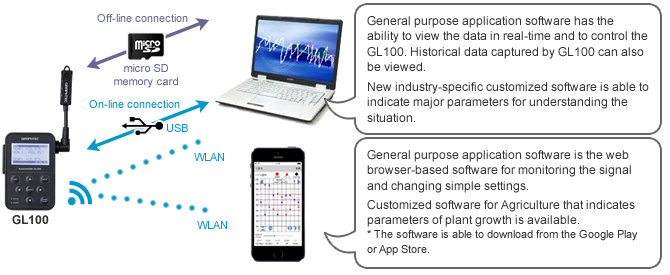

Available the software for PC & Smart devices

The GL100 is able to use with the PC or the Smart devices. The data on the GL100 can be monitored using the software.

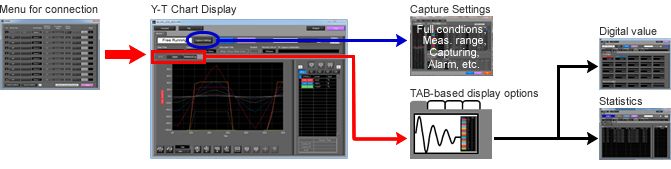

General-purpose software for PC

General purpose application software will continue to have the ability to view in Y-T chart, waveform, and digital values. It is able to be also controlled the GL100 in real-time.

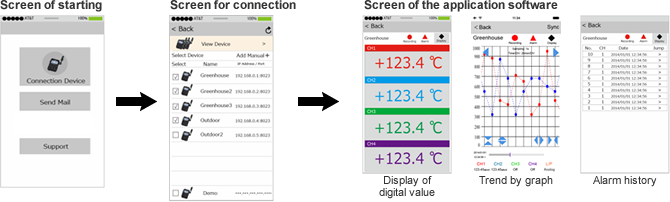

General-purpose software for the Smart devices

General purpose application software has the ability to view in Y-T chart and digital values. The displayed information will be refreshed by request. The simple settings of GL100 are able to control.
* It is available for the Android OS and the iOS in the Google Play or App Store.
  Supported OS : Android 4.1 to 6.0, iOS 9 / 10 / 11

The most recent captured data is displayed in the digital value, trend graph or the alarm history. It is updated by operation of synchronous.

Industry-specific software (for PC and Smart device)

The new industry-specific customize software will feature targeted software in accommodating users with indicators that are specific and familiar to that industry.

Agriculture
Indicators of plant growth

Logistics
Indicators of safe transportation and storage

Power
Indicators of electric energy

Specific-industry Measurement capability Description
Agriculture
  • Temperature Accumulation
  • Humidity Deficit
  • Amount of solar radiation
  • Amount of ultraviolet rays
Confirm temperature accumulation, humidity deficit, solar radiation, ultraviolet rays as part of the vital indicators for healthy plant growth. Measure optimal saturation deficit by understanding the best conditions applied for growth, flowering, and fruiting using temperature accumulation and optimal growth environment scheme.
Logistics
  • Search and display
    acceleration thresholds
  • Temperature Accumulation
  • Humidity Deficit
Transpiration of industrial equipment, temperature controlled transport of food, and warehouse temperature management can all be monitored to provide the safest and secured operation. Safety measurements through monitoring the vibration of the transport vehicles can be vital to heavy-industrial and vibration sensitive equipment. Accumulated temperature monitoring and humidity levels will be vital to keeping food fresh in a controlled environment.
Power measurement
  • AC current
  • Power
  • Integrated power
Power and electric energy levels will be displayed on the graph using measured AC current locally at the factory, buildings and industrial equipment. Corresponds to three power systems including two-wire single-phase, three-wire single-phase, or three-wire in three-phase.

Possible to check the data in multiple method

Wireless access will support multiple configurations for both secured and world wide internet access.

The following configuration is available to communicate with the GL100. The available function varies by the configuration.

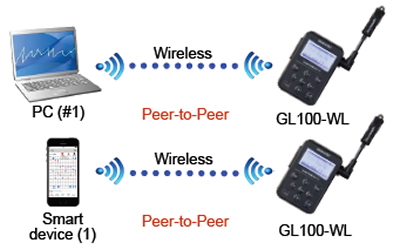

Configuration Case 1

Direct connection (peer-to-peer) with no LAN connection

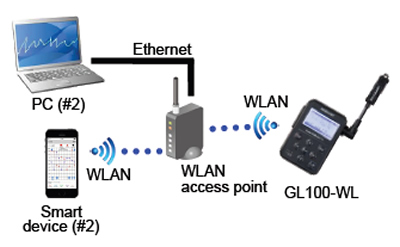

Configuration Case 2 *1

Local area network (LAN) with no Internet connection

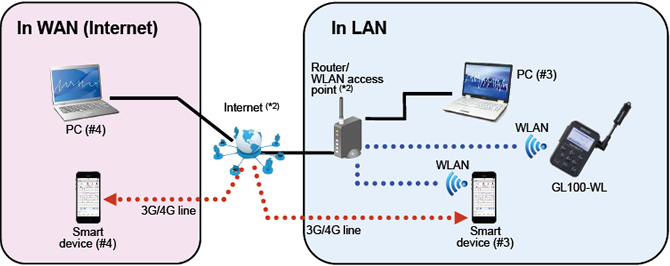

Configuration Case 3 *1

Local area network (LAN) with Internet connection

Available functions Configuration Case 1 Configuration Case 2 Configuration Case 3
PC (#1) Smart
device (#1)
PC (#2) *1 Smart
device (#2)
PC (#3) *1 Smart
device (#3)
PC (#4) Smart
device (#4)
Control of full functions Ο   Ο   Ο   Δ*2
Control of simple functions
(Start/Stop, Sampling, Alarm)
  Ο   Ο   Ο   Δ*2
Display Waveform/Digital value Ο Ο Ο Ο Ο Ο Δ*2 Δ*2
Save data to PC Ο   Ο   Ο   Δ*2
Receive message via email         Ο Ο Ο Ο

Ο:Function is available. Δ:Function is available in the condition.

*1:
Multiple PC cannot make connection to the same GL100 simultaneously.
*2:
Assign a static global IP. Or DDNS service must be available within network and the GL100 configured as a device within the WAN.
*
When the router has the static IP address, it is able to access from the Internet (WAN) using the static IP address.
*
When the DDNS (Dynamic Domain Name Server) is used, the ISP provide the DDNS service and the router supports the DDNS. The router will have the domain name. It is able to access from the Internet (WAN) using the domain name.
