ขนาดของอุปกรณ์

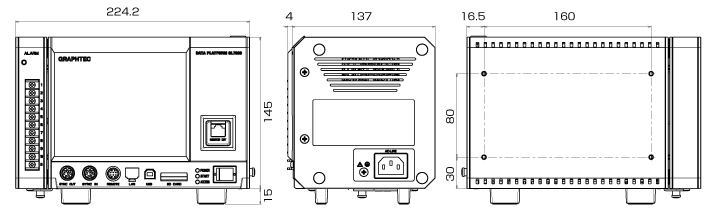

GL7000 Main module

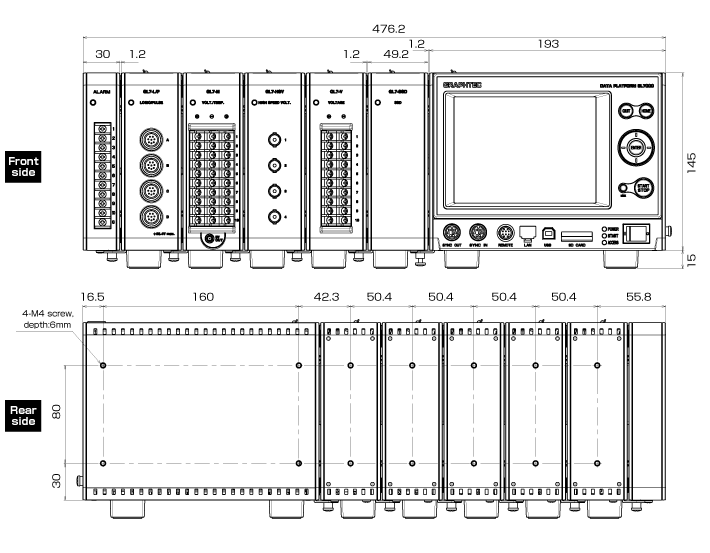

GL7000 Main module with four input/output modules and SSD module

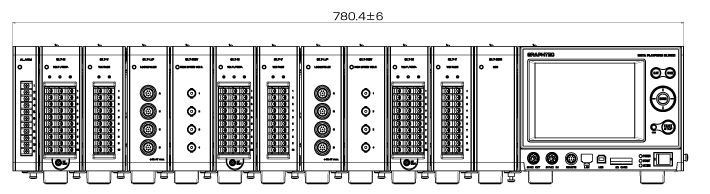

GL7000 Main module with ten input/output modules and SSD module

*

Scale : mm
Tolerance : ± 3 mm

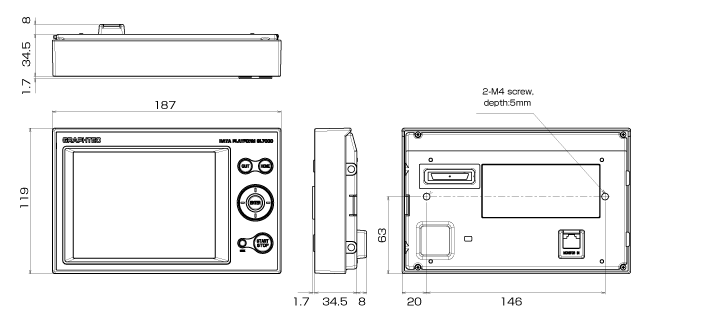

Display module

*

Scale : mm
Tolerance : ± 3 mm

Input / Output Module

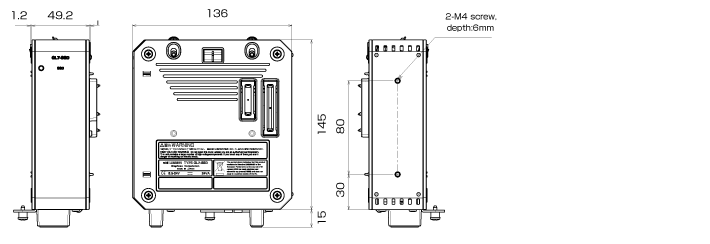

SSD module (GL7-SSD)

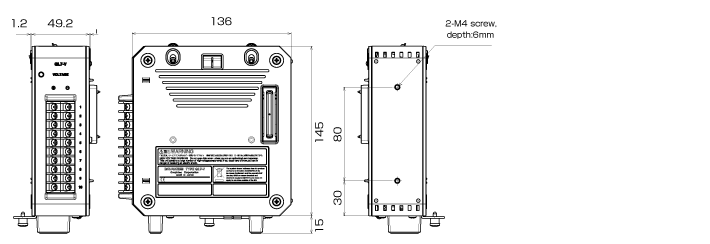

Voltage module (GL7-V)

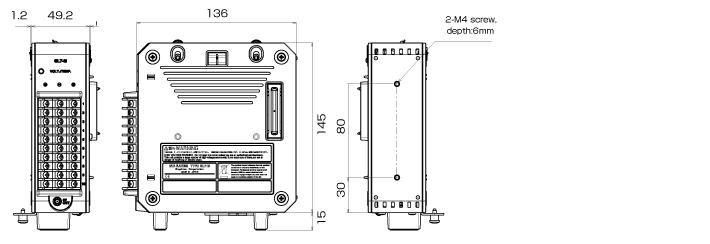

Voltage/Temperature module (GL7-M)

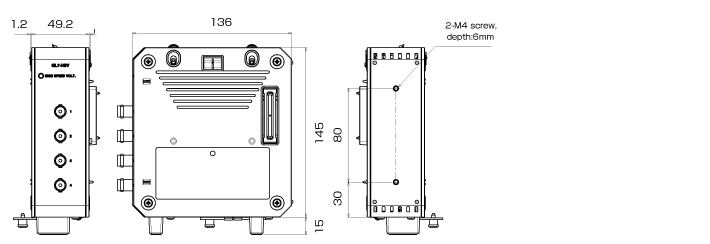

Hi-speed Voltage module (GL7-HSV)

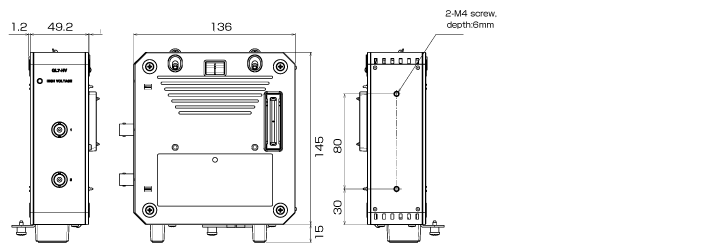

High Voltage module (GL7-HV)

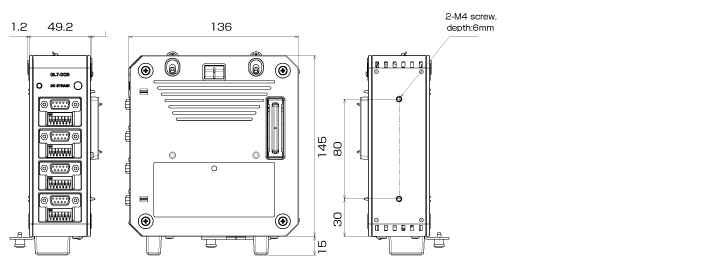

DC Strain module (GL7-DCB)

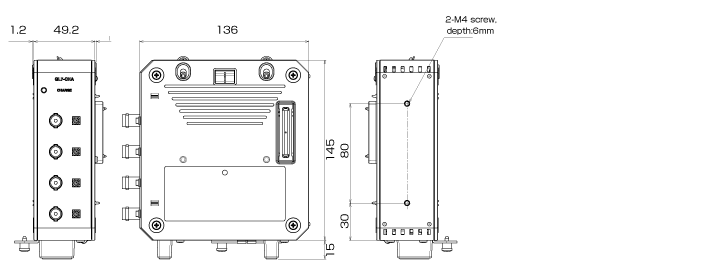

Charge module (GL7-CHA)

Logic / Pulse module (GL7-L/P)

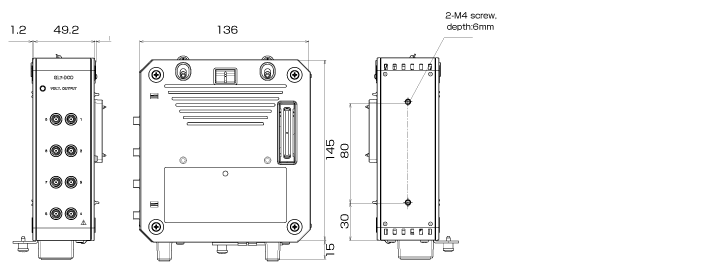

Voltage Output module (GL7-DCO)

*

Scale : mm
Tolerance : ± 3 mm
