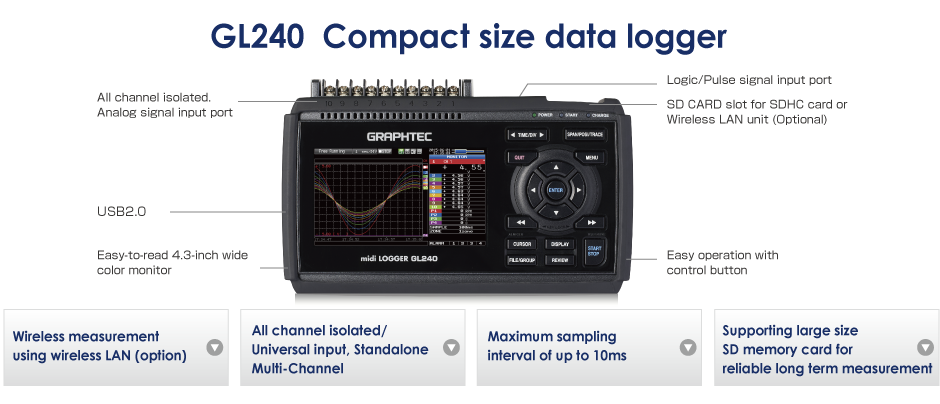

All channel Isolated/Universal input, Standalone Multi-Channel
Its compact size contains an isolated input system which ensures that signals are not corrupted by inputs to other channels, thus eliminating wiring concerns. The GL240s multi-type inputs are suitable for voltage, temperature, humidity, pulse, and logic signals, enabling combined measurements of different phenomena like temperature/humidity and voltage.
Voltage | 20 mV - 100 V , 1-5 V/F.S. |
Thermocouple |
Type: K, J, E, T, R, S, B, N, and W (WRe5-26) |
Humidity |
0 to 100% RH- using the humidity sensor (option B-530) |
Pulse |
4ch Rotation count (RPM), Accumulating count, Instant count |
Logic | 4ch |
GL240 Analog input specifications
Item | Description | |||
---|---|---|---|---|
Input method | All channels isolated balanced input *13, Scans channels for sampling | |||
Type of input terminal | Screw terminal (M3 screw) | |||
Measurement range |
Voltage | 20, 50, 100, 200, 500 mV, 1, 2, 5, 10, 20, 50, 100 V, and 1-5V F.S. (Full Scale) | ||
Thermocouple | Type: K, J, E, T, R, S, B, N, and W (WRe5-26) | |||
Humidity | 0 to 100 % RH - using the humidity sensor (option B-530) | |||
Filter | Off, 2, 5, 10, 20, 40 (moving average in selected number) | |||
Measurement accuracy *14 |
Voltage | ± 0.1% of F.S. (Full Scale) | ||
Temperature (Thermocouple)*15 |
Type | Measurement range (TS: Temp Sense) |
Measurement accuracy | |
R | 0 ≤ TS ≤ 100 ºC | ± 5.2 ºC | ||
100 < TS ≤ 300 ºC | ± 3.0 ºC | |||
300 < TS ≤ 1600 ºC | ± (0.05% of rdg. + 2.0 ºC) | |||
S | 0 ≤ TS ≤ 100 ºC | ± 5.2 ºC | ||
100 < TS ≤ 300 ºC | ± 3.0 ºC | |||
300 < TS ≤ 1760 ºC | ± (0.05% of rdg. + 2.0 ºC) | |||
B | 400 ≤ TS ≤ 600 ºC | ± 3.5 ºC | ||
600 < TS ≤ 1820 ºC | ± (0.05% of rdg. + 2.0 ºC) | |||
K | -200 ≤ TS ≤ -100 ºC | ± (0.05% of rdg. + 2.0 ºC) | ||
-100 < TS ≤ 1370 ºC | ± (0.05% of rdg. + 1.0 ºC) | |||
E | -200 ≤ TS ≤ -100 ºC | ± (0.05% of rdg. + 2.0 ºC) | ||
-100 < TS ≤ 800 ºC | ± (0.05% of rdg. + 1.0 ºC) | |||
T | -200 ≤ TS ≤ -100 ºC | ± (0.1% of rdg. + 1.5 ºC) | ||
-100 < TS ≤ 400 ºC | ± (0.1% of rdg. + 0.5 ºC) | |||
J | -200 ≤ TS ≤ -100 ºC | ± 2.7 ºC | ||
-100 < TS ≤ 100 ºC | ± 1.7 ºC | |||
100 < TS ≤ 1100 ºC | ± (0.05% of rdg. + 1.0 ºC) | |||
N | -200 ≤ TS < 0 ºC | ± (0.1% of rdg. + 2.0 ºC) | ||
0 ≤ TS ≤ 1300 ºC | ± (0.1% of rdg. + 1.0 ºC) | |||
W | 0 ≤ TS ≤ 2000 ºC | ± (0.1% of rdg. + 1.5 ºC) | ||
R.J.C. | ± 0.5 ºC | |||
A/D converter | Sigma-Delta type, 16 bits (effective resolution: 1/40000 of the measuring full range) | |||
Maximum input voltage |
Between (+) / (-) terminal |
20 mV to 1 V range: 60 Vp-p, 2 V to 100 V range: 110 Vp-p |
||
Channels ((-) / (-)) | 60 Vp-p | |||
Channel / GND | 60 Vp-p | |||
Max. voltage (withstand) |
Between channels | 350 Vp-p (1 minute) | ||
Channel / GND | 350 Vp-p (1 minute) |
- *13
- The terminal "b" for using the RTD is connected each other across all channels.
- *14
- Subject to the following conditions:
- Room temperature is 23 oC ± 5 oC.
- When 30 minutes or more have elapsed after power was turned on.
- Filter is set to 10.
- Sampling rate is set to 1 sec, using 10-channel.
- GND terminal is connected to ground.
- *15
- Wire size of thermocouple used is 0.32mm diameter in the T or K type and 0.65mm diameter in other types.
